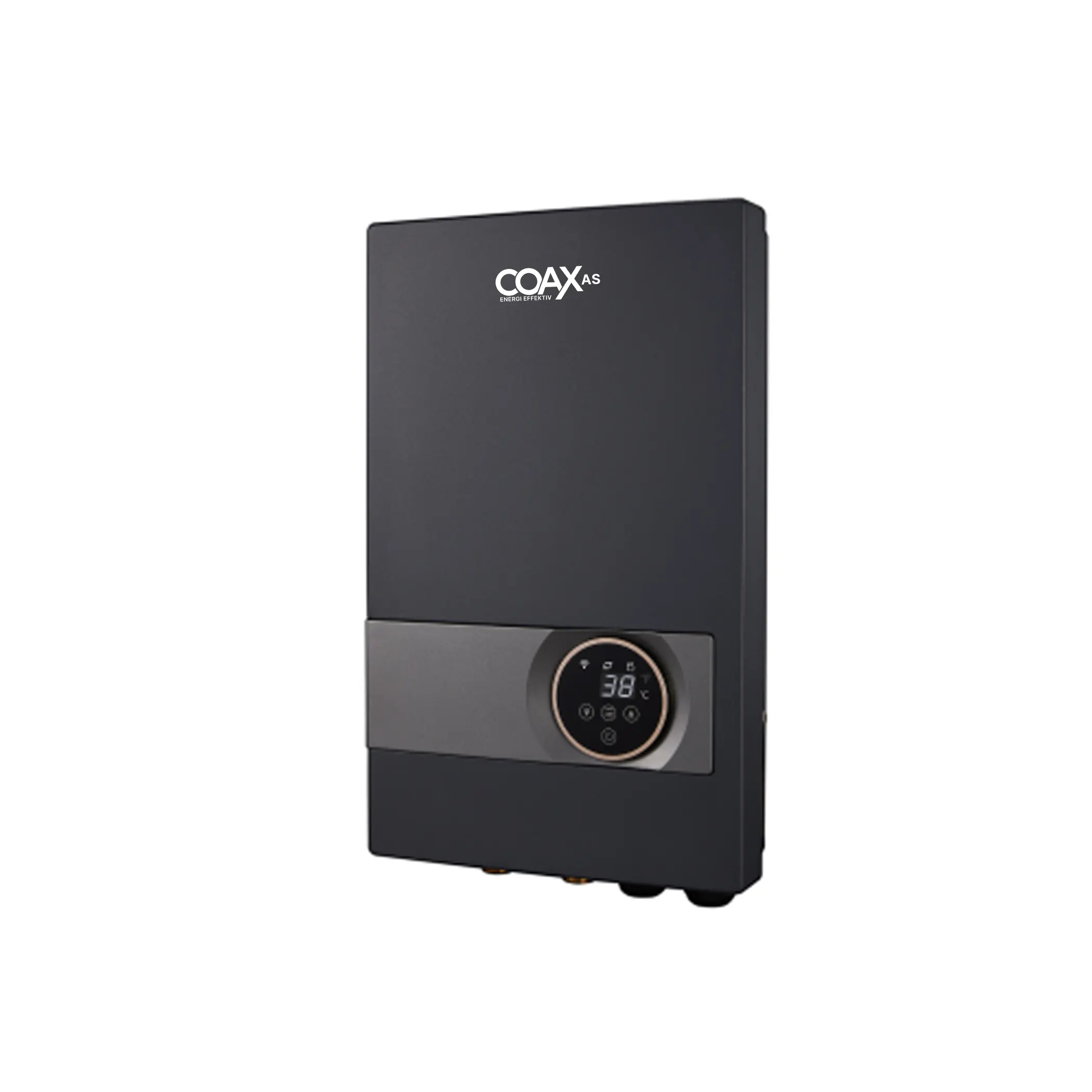

JNE-3
- Endless hot water, stable temperature whatever the water pressure
- Wide power output range from 9 kW to 24 kW, for everything from homes to commercial buildings
- Water- and electricity-insulated construction for maximum safety
- IP25 water protection, safe in wet rooms
- Supports the Tuya Smart app with wifi control for easy control from your phone. Smart app integration lets you adjust functions, monitor operation and receive alerts, wherever you are. Perfect for a modern, smart everyday life.
How the JNE-3 works
JNE-3 gives you hot water the moment you turn on the tap, and it does not run out. It heats the water as it flows past, so you avoid a tank that sits there keeping water hot that you are not using.

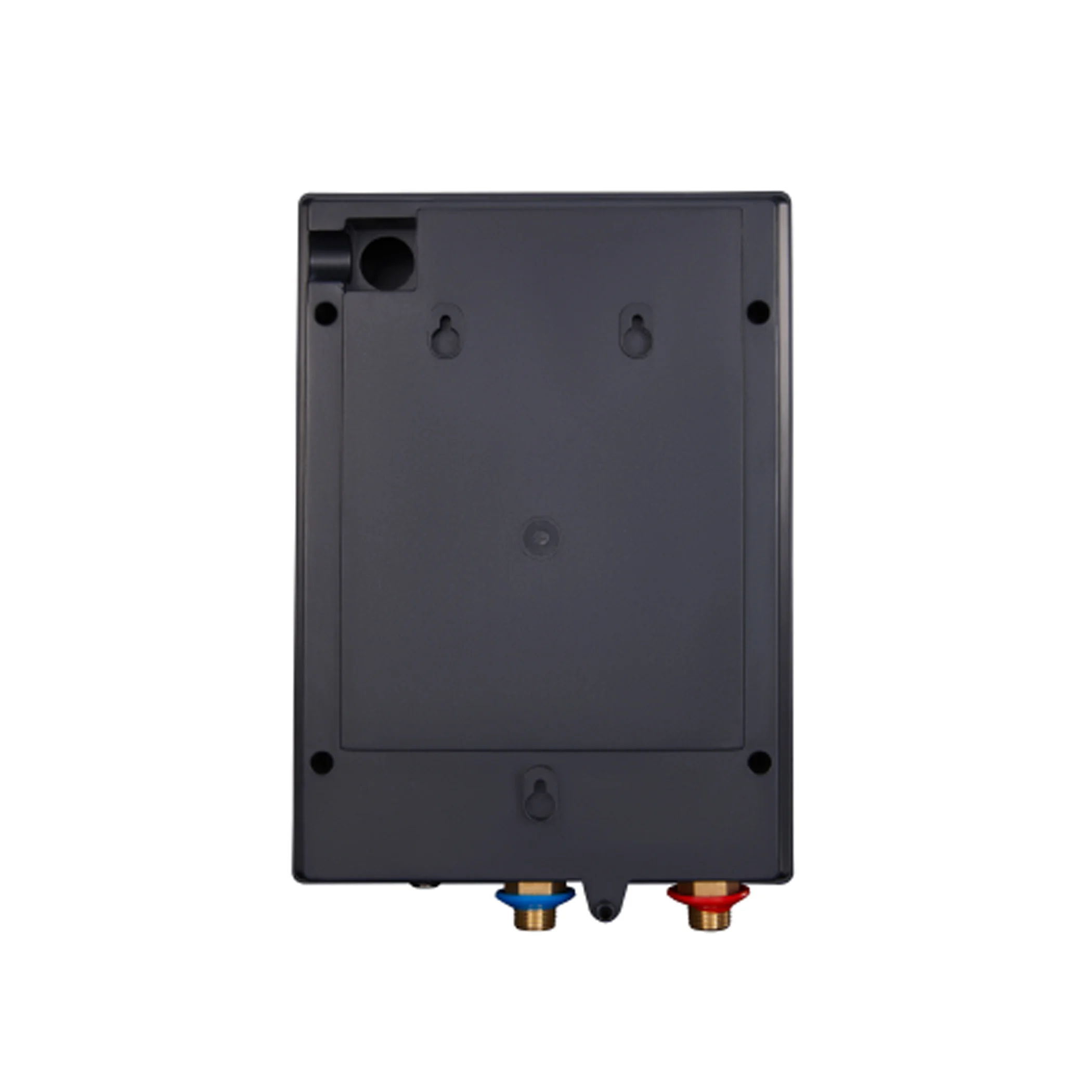

The heater hangs on the wall and takes up roughly 90 % less space than a conventional tank. Hot water is there after about five seconds, and the temperature stays within one degree of what you have set, even when the pressure fluctuates because someone turns on a tap elsewhere in the house.

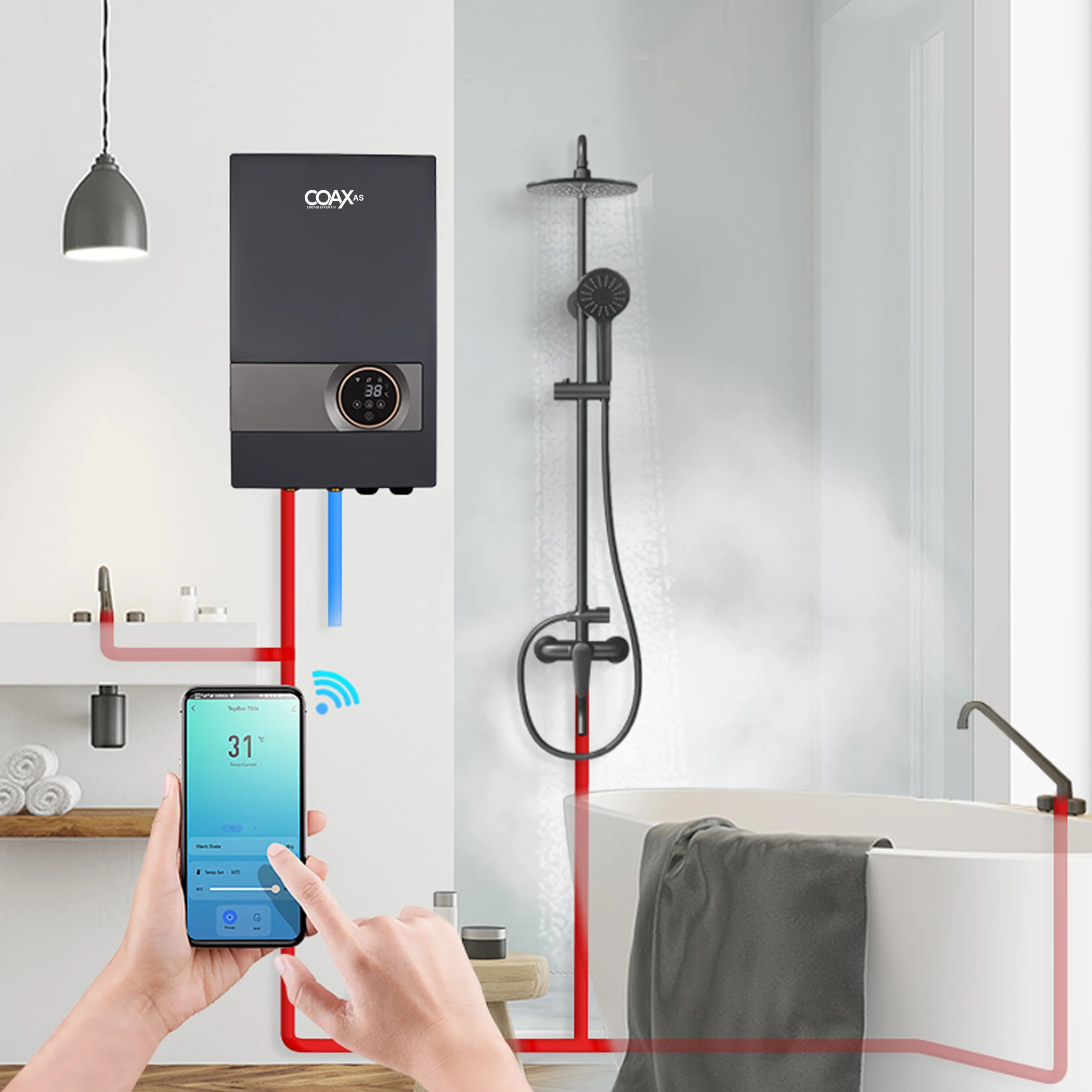

You control it from the touchscreen on the front, or from your phone with the Tuya app. The screen shows the inlet and outlet temperatures, how much water you are using and how much electricity it takes.
Inside, water and electricity are physically separated. The heating element is cast aluminium in a multi-layer heating chamber that counteracts limescale, and the heater has overheating protection, overpressure protection, anti-scalding, leak protection and IP25. If a fault occurs, it finds it itself and shows it on the display.
JNE-3 is three-phase 400 V and is supplied from 9 to 24 kW, so it covers everything from a flat to a hotel.
- Model
- JNE309
- Phase
- three-phase
- Voltage (V)
- 230/400 V
- Rated current
- 3×13 A
- Fuse
- 16 A
- Connection cable
- 5×1.5 mm²
- Temperature range (°C)
- 30 - 60 °C
- Overheat protection (°C)
- 75 °C
- Thermal cut-off (°C)
- 95 °C
- Protection class
- IP25 Vannsikker
- Working pressure
- 0.02-0.6MPa
- Minimum flow to activate
- 1.5 l/min
- Capacity at Δt 25 °C
- 5 l/min
- Recommended pipe size
- G 1/2
- Dimensions (H × W × D)
- 358×246×85 mm
- Weight
- 4.2 kg
- Energy efficiency (%)
- 98 %
- Colour
- Koksgrå
- Certifications
- CE · CB · LVD · EMC
| Model | JNE309 9 kW | JNE312 12 kW | JNE315 15 kW | JNE318 18 kW | JNE321 21 kW | JNE324 24 kW |
|---|---|---|---|---|---|---|
| Phase | three-phase | |||||
| Voltage (V) | 230/400 V | |||||
| Rated current | 3×13 A | 3×17.4 A | 3×21.7 A | 3×26 A | 3×30.4 A | 3×34.8 A |
| Fuse | 16 A | 20 A | 25 A | 32 A | 40 A | |
| Connection cable | 5×1.5 mm² | 5×2.5 mm² | 5×4 mm² | 5×6 mm² | ||
| Temperature range (°C) | 30 - 60 °C | |||||
| Overheat protection (°C) | 75 °C | |||||
| Thermal cut-off (°C) | 95 °C | |||||
| Protection class | IP25 Vannsikker | |||||
| Working pressure | 0.02-0.6MPa | |||||
| Minimum flow to activate | 1.5 l/min | 2.5 l/min | 3 l/min | |||
| Capacity at Δt 25 °C | 5 l/min | 7 l/min | 8 l/min | 10 l/min | 12 l/min | 14 l/min |
| Recommended pipe size | G 1/2 | |||||
| Dimensions (H × W × D) | 358×246×85 mm | 488×282×102 mm | ||||
| Weight | 4.2 kg | 5.3 kg | 5.5 kg | 6.2 kg | 6.4 kg | |
| Energy efficiency (%) | 98 % | |||||
| Colour | Koksgrå | |||||
| Certifications | CE · CB · LVD · EMC | |||||
Features
- Endless hot water, stable temperature whatever the water pressure
- Wide power output range from 9 kW to 24 kW, for everything from homes to commercial buildings
- Water- and electricity-insulated construction for maximum safety
- IP25 water protection, safe in wet rooms
- Supports the Tuya Smart app with wifi control for easy control from your phone. Smart app integration lets you adjust functions, monitor operation and receive alerts, wherever you are. Perfect for a modern, smart everyday life.
Installation
JNE is mounted directly on the wall and connected to the existing cold water pipes with a standard G1/2” connection. The unit requires three-phase 400V power, and the electrical installation must be carried out by an authorised electrician. Once the heater is fixed in place and the water connected, open the tap to release air before start-up. Set the desired temperature via the touchscreen, the Smart/WiFi app (TUYA). JNE has automatic fault diagnosis and shows any faults directly on the display, so the installation can be checked and completed quickly.
